A meter for every density
Seven measurement methods across ten product series. Pick by physics, by application, or browse the full catalog.
Also covers online density meter, inline concentration meter, industrial density meter, slurry density meter, slurry concentration meter, non-nuclear density meter, non-nuclear concentration meter
Three quick paths to the right principle
By medium
Abrasive bubbly slurry → ultrasonic acoustic impedance (PS7000). Clean liquid → ultrasonic sound velocity, tuning fork or Coriolis. Opaque water-bearing slurry → microwave. Multi-component analysis → spectroscopic.
By accuracy
Lab-grade ±0.0005 g/cm³ → ultrasonic sound velocity (PS7020). Process-grade ±0.001 g/cm³ → tuning fork or Coriolis. Field-grade ±1% FS → ultrasonic slurry, microwave, gamma. Tank gauging → DP.
By constraint
No drilling / hot tapping → ultrasonic acoustic attenuation clamp-on (PS7010) or gamma clamp-on (PS7500). Sanitary CIP/SIP → ultrasonic sound velocity (PS7020) or Coriolis with Tri-Clamp. Hazardous area → ExdⅡCT6Gb available across the catalog.
Ultrasonic

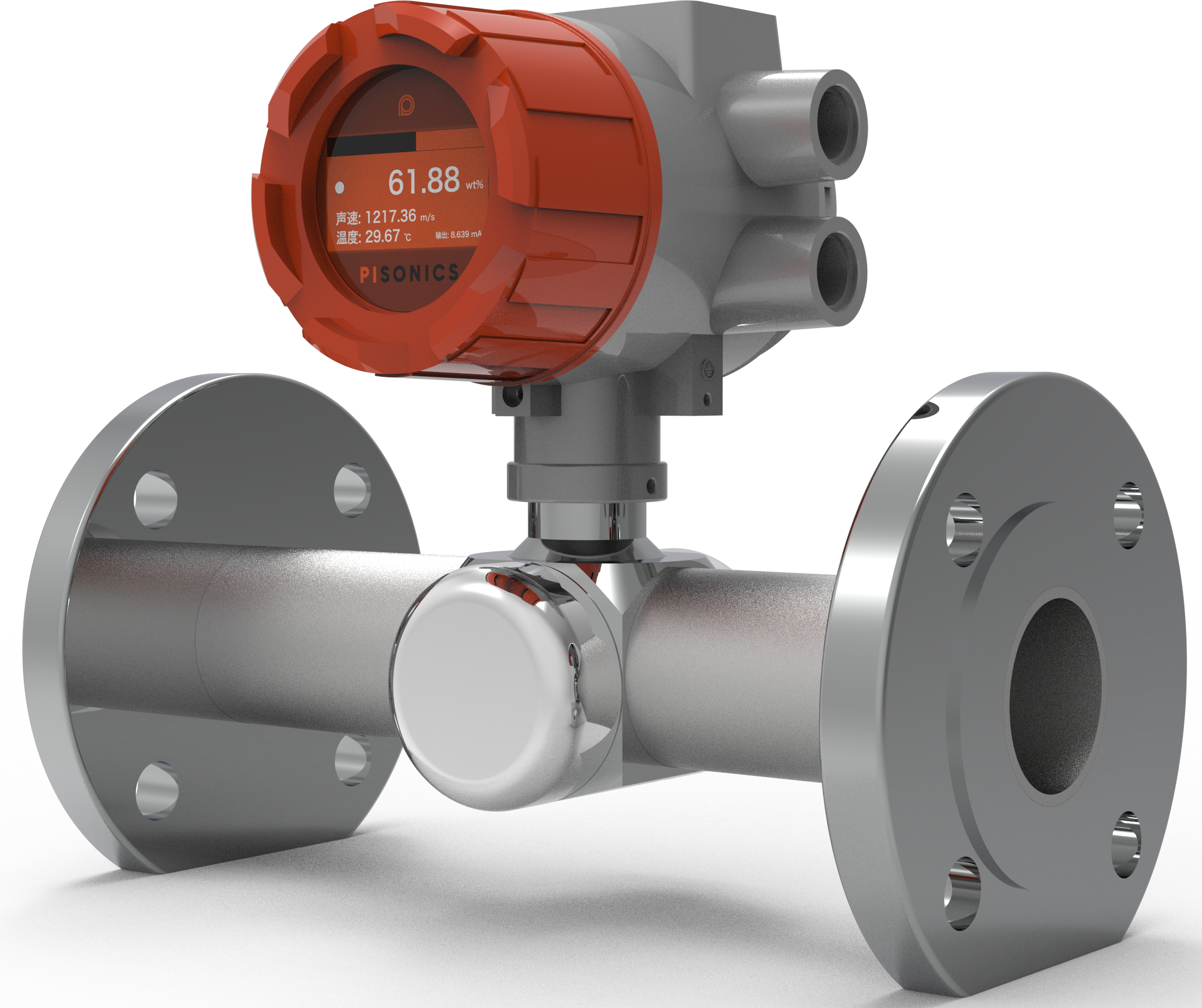

Ultrasonic Density Meter →Sound waves through the medium — three sub-methods covering the full slurry-to-clean-liquid range. Acoustic impedance (PS7000) handles abrasive bubbly slurries; acoustic attenuation (PS7010) supports clamp-on no-cut installation; sound velocity (PS7020) delivers ±0.0005 g/cm³ on clean liquids.
Acoustic impedance
1 models
Acoustic attenuation
1 modelsSound velocity
1 models
Tuning fork
Tuning Fork Density Meter →Piezo-driven fork resonating in the liquid — frequency tracks density, with PT1000 temperature compensation. No moving mechanical parts, no electrodes, no consumables. Six installation accessories cover pipeline, tank-top and side-mount applications.
Coriolis
Coriolis Density Meter →Coriolis-effect vibrating tube — pure-frequency density measurement, no zero or span drift, long-term stable. Two body styles: triangular bent tube (PS7210) for general industrial use, straight tube (PS7220) for high-viscosity (≤ 20000 cP) or solids-laden liquids.
Optical
Optical Concentration Meter →Two distinct optical methods. Spectroscopic (PS7100): UV-Vis-NIR LED array + Beer-Lambert absorption, multi-component identification, no reagents. Refractive index (PS7110): sapphire prism + CCD critical-angle detection, immune to color, turbidity, bubbles and particles.
Spectroscopic (UV-Vis-NIR)
1 modelsRefractive index
1 modelsMicrowave

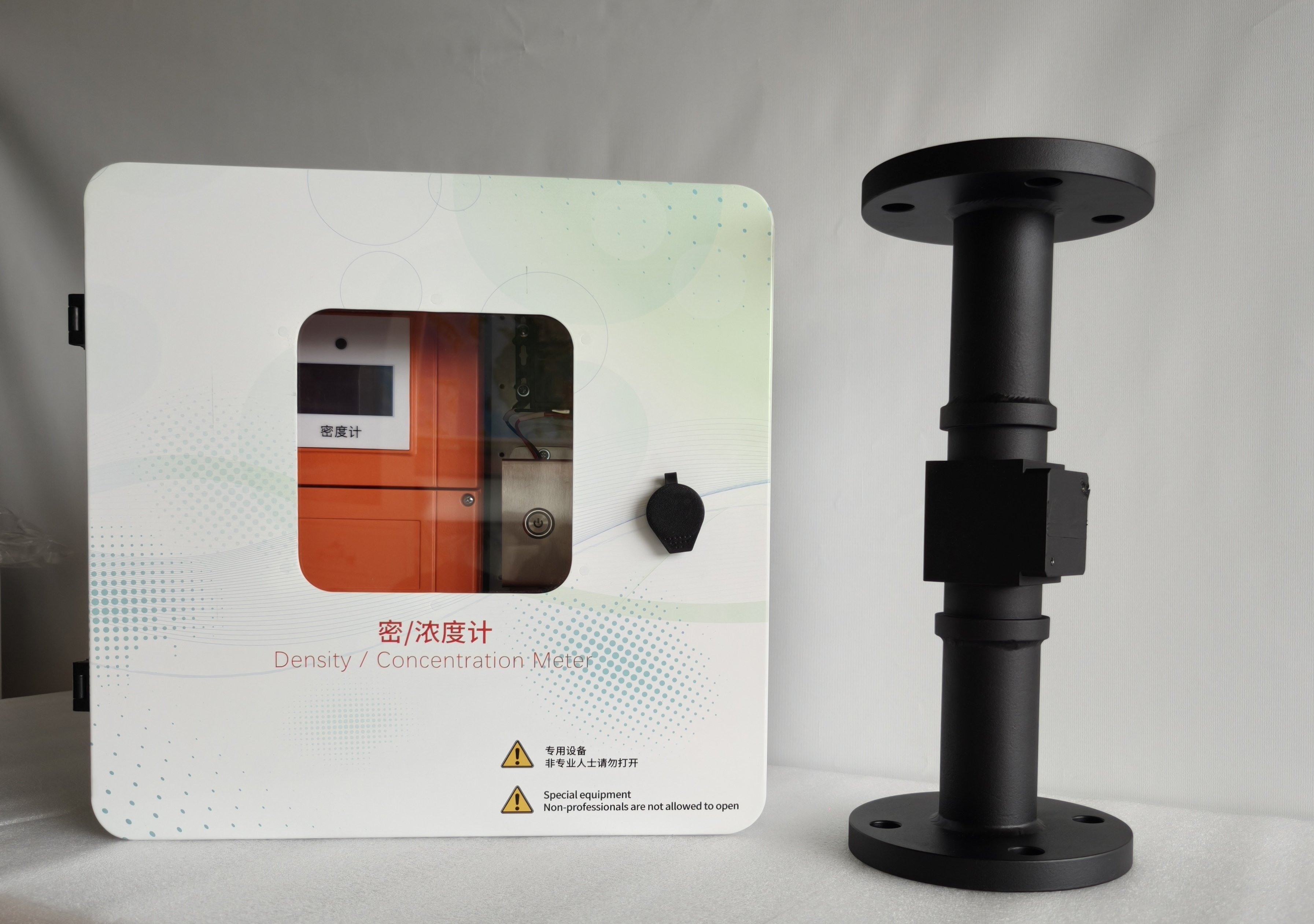

Microwave Density Meter →Microwave phase-shift transmission (PS7600) — water's high dielectric constant (ε ≈ 80) makes phase shift the most sensitive water-content signal. Pt-100 real-time temperature compensation. Ideal for opaque slurries: FGD, coal washing, ore slurry, sludge.
Differential pressure
Differential Pressure Density Meter →Differential pressure across a known column height (PS7300) — ρ = ΔP / (g·H). Pure physical measurement, no moving parts, ≤ ±0.2%/12 months drift. Three installation styles (straight insert / bent insert / side-mount) cover tank-top, in-tank and tank-wall layouts.
